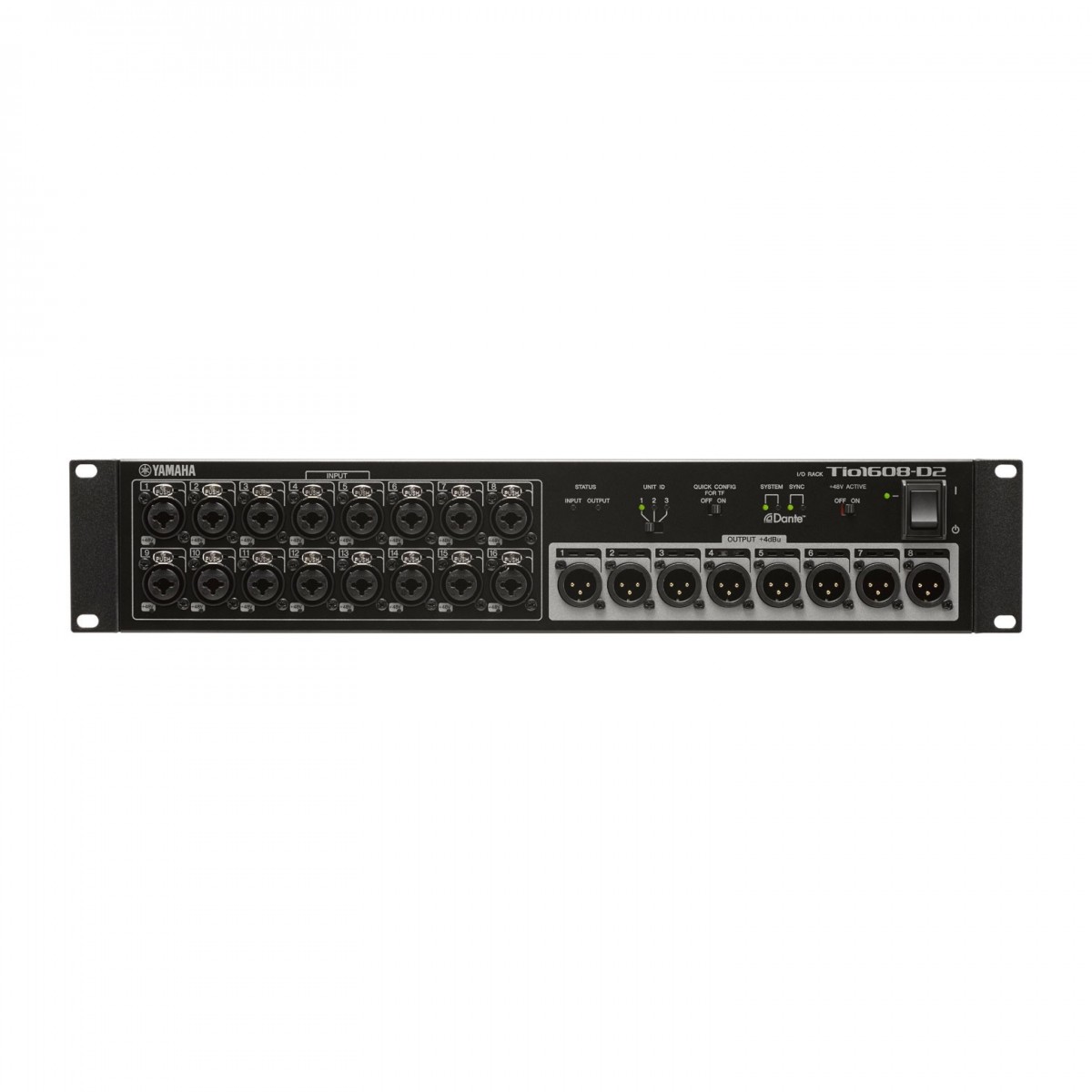

Yamaha TIO1608-D Stagebox

Digital stagebox / Dante snake

16-in, 8-out digital stagebox for live or studio sound applications
Equipped with Dante network connectivity for fast, stable audio transmission
Integration with Yamaha DM and TF-series mixers for quick and easy setup
16 mic/line inputs and 8 line outputs for simplifying wide-ranging audio setups
Rapid and versatile input selection with all 16 inputs accepting signals from multiple locations
Clean, high headroom D-PRE preamps with recallability for easy and consistent sound mixing
Up to 96 kHz audio for pristine sound quality
Specifications
Sample Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, selectable
Signal Delay: Less than 1.3 ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25 ms (one way), Fs = 96 kHz; Less than 2.6 ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25 ms (one way), Fs = 48 kHz
Total Harmonic Distortion: Less than 0.2% +4 dBu @ 20 Hz - 20 kHz into 600?, Gain = +66 dB / Less than 0.05% +4 dBU @ 20Hz - 20kHz into 600?, Gain = -6 dB, INPUT to OUTPUT, Fs = 88.2 kHz, 96kHz; Less than 0.1% +4 dBu @ 20 Hz - 20 kHz into 600?, Gain = +66 dB / Less than 0.05% +4 dBU @ 20 Hz - 20 kHz into 600?, Gain = -6 dB, INPUT to OUTPUT, Fs = 44.1 kHz, 48 kHz *Measured with a -18 dB/octave filter @ 80 kHz
Dynamic Range: 108 dB
Frequency Response: 20 Hz - 20 kHz
Equivalent Input Noise: -128 dBu, Gain = +66 dB, Fs 96 kHz, 48 kHz *Measured with A-weighting filter
Residual Output Noise: -86 dBu, Fs 96 kHz / -88 dBu, Fs 48 kHz, ST main off *Measured with A-weighting filter
Crosstalk: -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @ 22 kHz
Heat Dissipation: 100 - 240 V, 50/60 Hz. 43.5 kcal/h
Power Requirements: 100 - 240 V, 50/60 Hz
Power Consumption: 50 W
Dimensions (W x H x D): 480 x 88 x 364 mm (18.5 x 3.5 x 14.4")
Weight: 5.7 kg (12.6 lbs)
