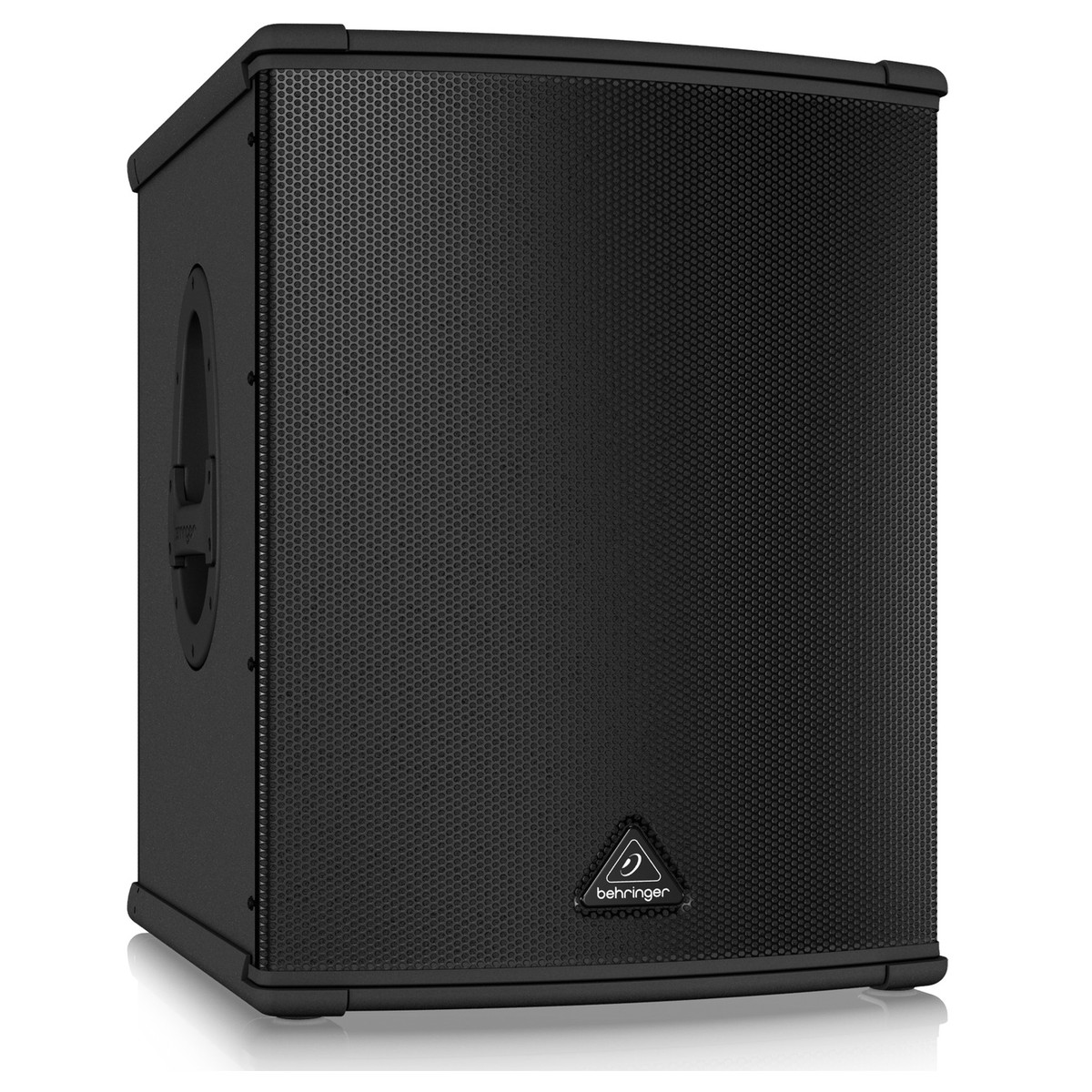

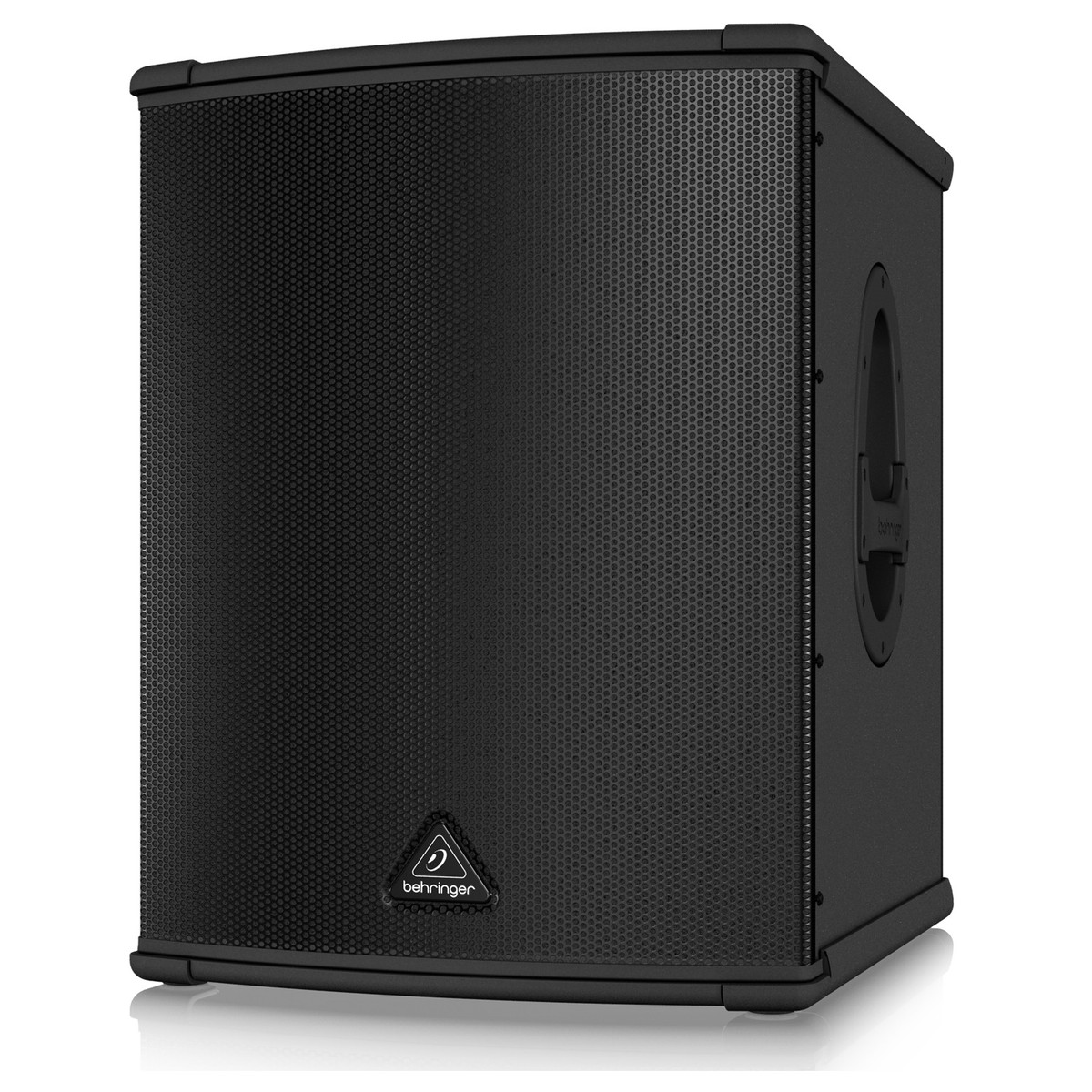

Behringer B1500XP 15'' Sub

Mid-range 15'' subwoofer

High-performance 3000-watt powered subwoofer
British engineered 15-inch TURBOSOUND speaker
Extremely high sound pressure level & accurate bass
Precise ultra-low frequency reproduction
Class-D amplification with over-excursion, thermal, RMS & clip limit protection
Integrated active stereo crossover with high-pass filtered outputs
Tunable & switchable bass boost & phase switch
Variable high cut control
Subwoofer level control
Power, signal & clip LEDs
Intelligent limiter
Internal switch-mode power supply
Integrated pole socket
Ergonomically shaped handles
Rugged steel grille
Specifications
Maximum Output Power: 3000W
Type: Class-D
Input A/B: XLR, Servo-Balanced
Sensitivity: +4 dBu @ 0 dB
Max Input: +22 dBu, Balanced,
Input Impedance: 12k? Unbalanced, 24k? Balanced
Thru A/B: XLR, Servo-Balanced
Output A/B: XLR, Servo-Balanced
High-Pass Filter: 100Hz, Butterwoth, 18 dB Slope
Controls
Level: ? to +6.0dB
Boost Frequency: 40Hz - 90Hz, +10 dB
Boost: Switchable
High Cut: 70 - 150Hz, Butterwoth, 24 dB Slope
Phase: 0° to 180° Phase Reverse Switch
Frequency Range: 32Hz - 200Hz (-10 dB)
Frequency Response: 45Hz - 150Hz (±3 dB)
Signal-To-Noise (20Hz to 20kHz): >100 dB (A-Weighted)
Sound Pressyre Level (Half Space): Max. 128 dB @ 1m
Woofer: 15"
Limiter: Optical
Indicators
Signal LED: Green
Limit LED: Red
Power LED: Amber
Amplifier Protection: Full Short Circuit, Thermal Protection
Load Protection: Turn-On/Off Muting
Power Supply, Voltage (Fuse)
USA/Canada/Japan: 100 - 120V, 50/60Hz
UK/Australia/Europe/Korea/China: 220 - 240V, 50/60Hz
Power Consumption @ 1/8 Rated Power: 180W
Mains Connection: Standard IEC Receptacle
Weight: 34.4 kg
Dimensions
Height: 608 mm
Width: 467 mm
Depth: 532 mm
