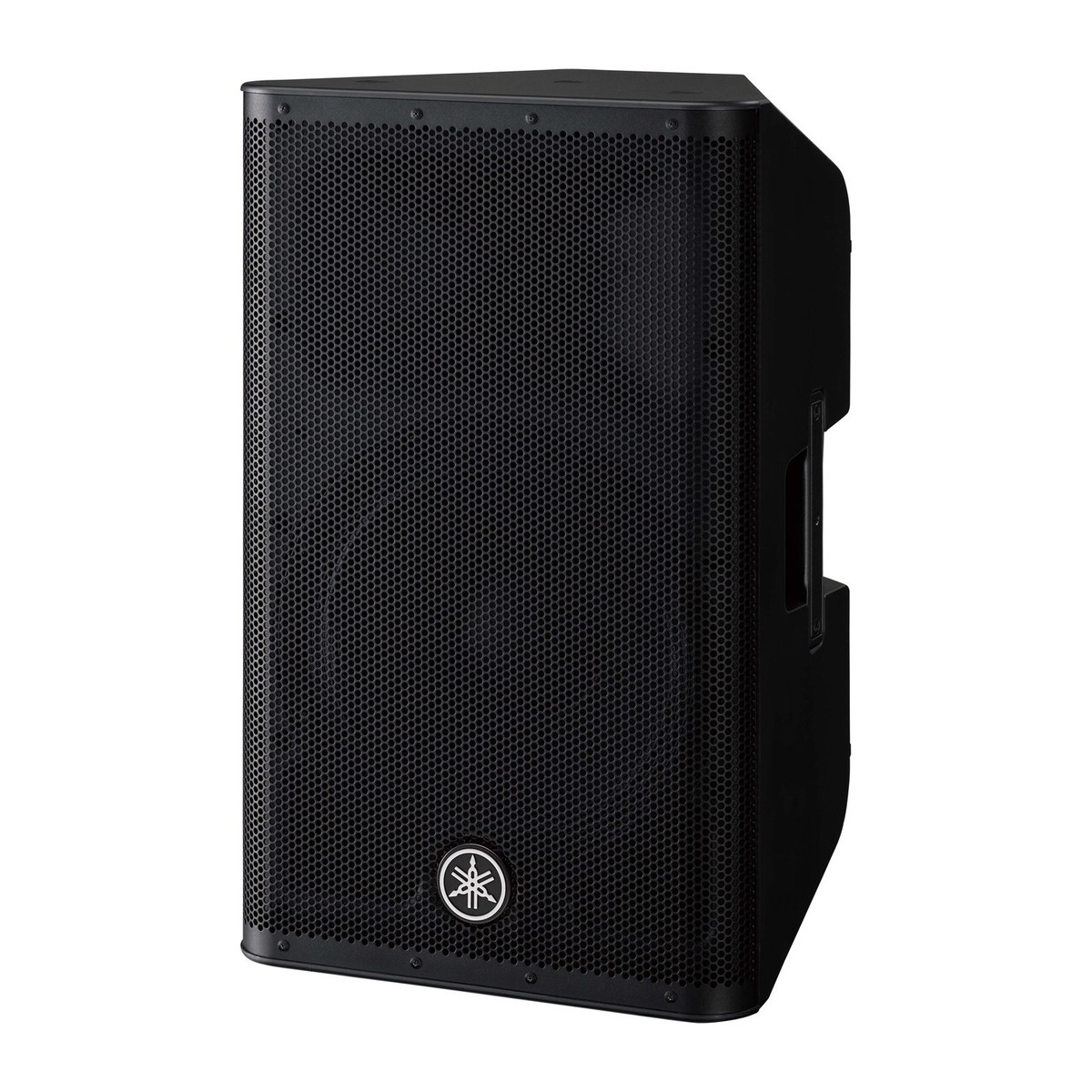

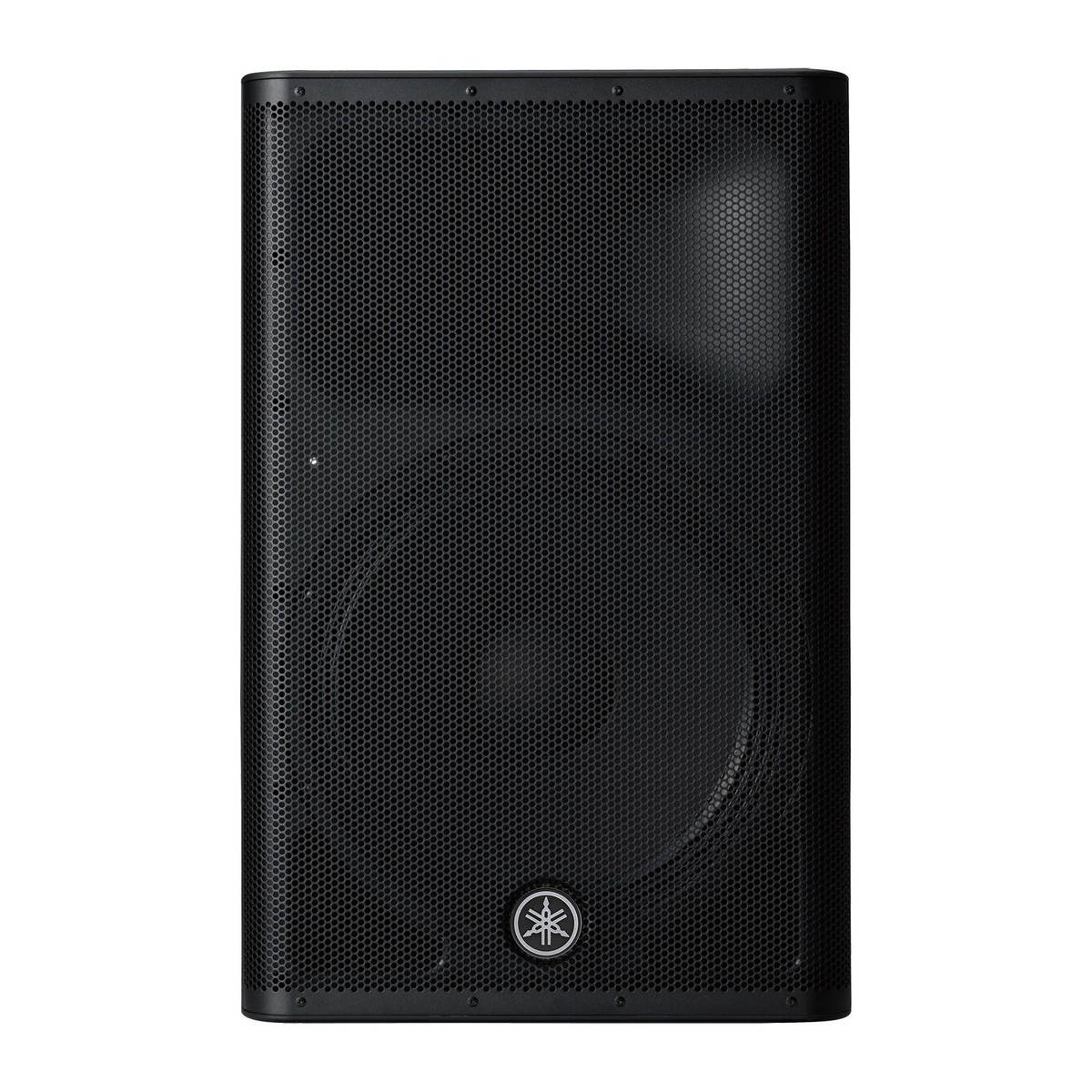

Yamaha DXR15
15'' top speaker
The Yamaha DXR15mkII stands out with its high-efficiency 1100W Class-D amplifier, achieving up to 134dB SPL. This power, combined with precise digital signal processing, allows the speaker to maintain high-definition sound quality at extremely high volumes, perfect for live performances where clarity and volume are paramount.
Specifications
General
System type: 2 way, bi-amped, bass reflex powered speaker
Frequency range (-10 dB): 49 Hz - 20 kHz
Coverage angle: H 90° x V 60° constant directivity horn
Crossover type: FIR-X tuning (linear phase FIR filter)
Max SPL (peak): 134 dB SPL
Transducers
Low frequency:
Diameter: 15'' cone
Voice coil: 2.5''
Magnet: Ferrite
High frequency:
Voice coil: 1.75''
Diaphragm: PET
Type: 1'' throat compression driver
Magnet: Neodymium
Enclosure
Material, finish, colour: ABS, matte black
Floor monitor angle: 50° Symmetrical
Dimensions (WxHxD): 445 x 700 x 380 mm
Net weight: 21.8 kg
Pole socket: 35 mm x 2 (0° or 7°)
Rigging points: Top x 2, Rear x 1, fits for M10 eyebolts
Amplifier
Amplifier type: Class-D
Dynamic power rating: 1100 watts
Continuous power rating: 700 watts
Cooling: fan cooling, 4 speeds
AD/DA: 24 bit, 48 kHz
Signal processing: 48 bit
HPF/LPF: off, 100, 120 Hz 24 dB/octave
DSP presets: D-contour, FOH/main, monitor, off

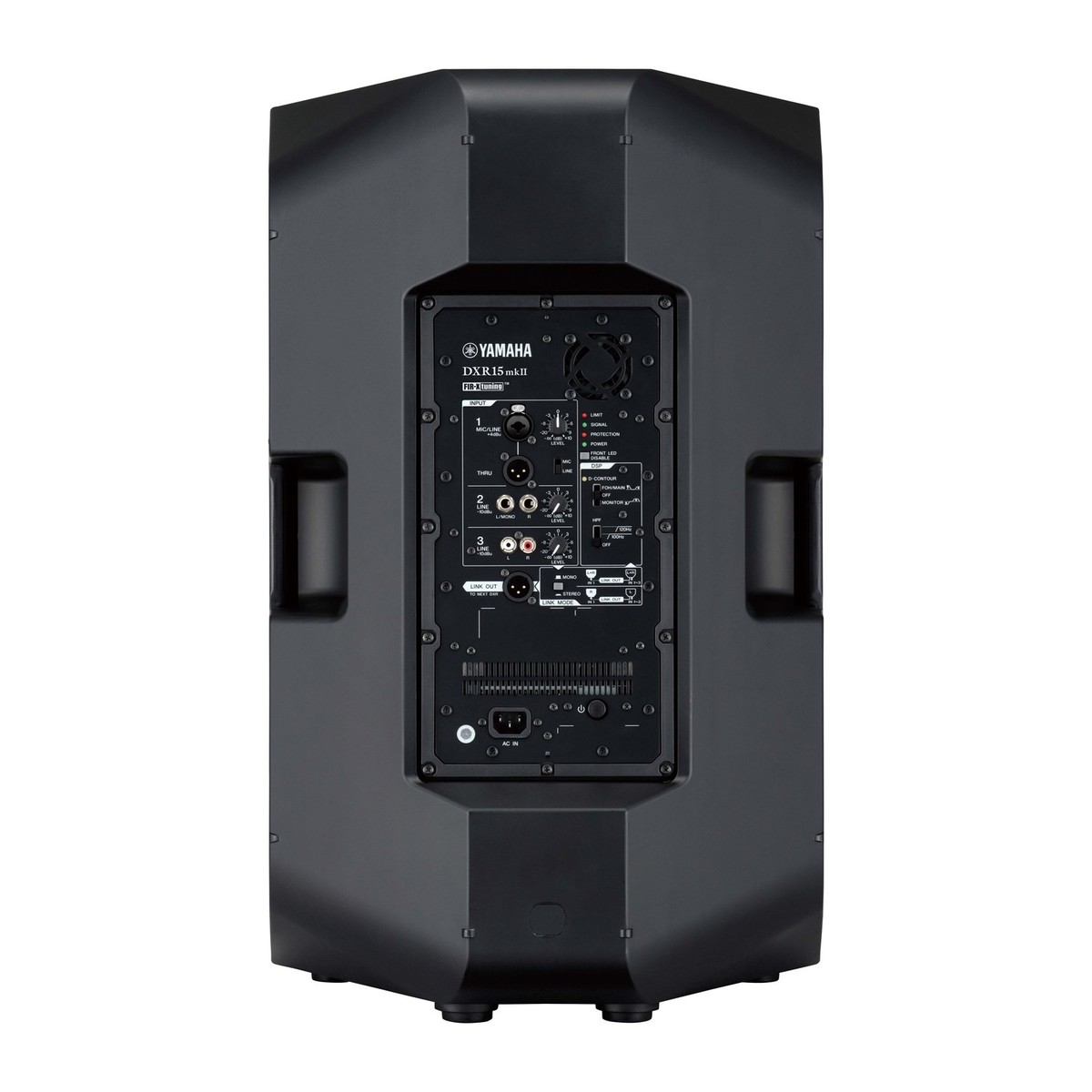

Input connectors: 1 x XLR/1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins
Output connectors: 2 x XLR
Idle power consumption: 35 watts
Hire Rates
Daily Rate
£45.00
Weekly Rate
£100.00
Sound Engineer add-on: £150.00/day or £600.00/week
